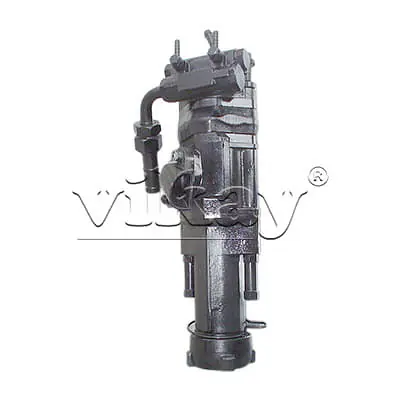

VK 12 Vikay Pneumatic Drifter
Description
VK 12 Vikay Pneumatic Drifter
Vikay is a Global Supplier of Pneumatic Drifter Model VK 12 from India

Vikay top Hammer Heavy Duty Rock Drill / Pneumatic Drifter Model VK-12
The Drifter is Rifle-Bar rotated heavy duty Rock Drill mounted on Rig for drifting and tunneling, making it ideal for such application as bench drilling in open-pit mines and Lime stone quarries, in underground Mining and Tunneling for Ring Drilling and Face Drilling, with the feature of reversible Rotation, which can also be disengaged so that only impact mechanism works
Technical Details
|  Model |   VK-12 |  |
| Weight | Â 70 Kgs | Â 154 lbs |
| Overall Length | Â 780 mm | Â 30 3/4" |
| Air Consumption | Â 167 l/s | Â 354 cfm |
| Working Pressure Max. Â Â Â | Â 7 bar | Â 100 psig |
| Piston Diameter | Â 120 mm | Â 4 3/4" |
| Piston Stroke | Â 65 mm | Â 2 1/2" |
| Impac Rate | Â 35 Hz | Â |
| Impact Power Max. | Â 7.2 kW | Â |
| Rotation Speed | Â 0 - 210 rpm | Â |
| Hole Diameters | Â 48 - 76 mm | Â |
| Drill Steel | Â R32, R38, T38 | Â |
Flushing is possible as air blowing or water flushing, all drill functions are operated from a control unit
Since approvement are made from time to time, the illustration and specifications are subject to change without notice.
