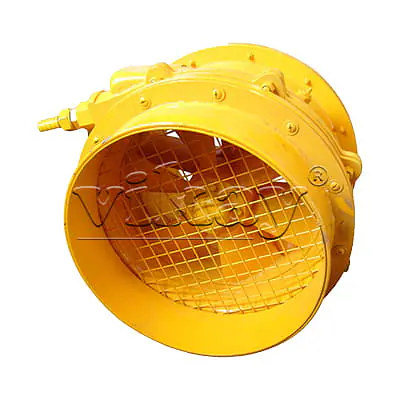

Vikay Pneumatic Ventilation Fan
Vikay Pneumatic Ventilation Fan VK-PVF16 for Underground Metal Mines

Â
Pneumatic Ventilation Fan is designed for underground metal mines, tunnels, Gold mines and Shaft Sinking, to remove Blasting Fumes very quickly and deliver fresh air into the mines. Over all weight 25 Kg. completely balanced to run at 4000 RPM. Fitted with precision ball and roller bearing for long life.
Technical Details
| Flanger Outer Dia | 22†|
| Impeller Outer Dia | 16" |
| Impeller Type | 6 Blades Dynamic Balanced |
| Body & Impeller | Aluminum |
| RPM | 4000 |
| Air Consumption | 82 cfm   @ 800 feet |
| Air Delivery | 2000 cfm @ 800 feet |
| Air Connection | 1†Hose |
| Water Gauge | 50 – 75 mm 2†– 3â€Â Approx. |
| Weight | 25 Kgs |
Flow Chart
| Air Supply | Air consumed | Volume of Ventilated air at distance  | ||
|  |  | 200 feet   | 600 Feet | 800 Feet  |
| 60 psig | 63 cfm | 3500 cfm | 2500 cfm | 2000 cfm |
| 70 psig | 71cfm | 4000cfm | 2750cfm | 2250cfm |
| 80 psig | 82 cfm | 4250 cfm | 3000 cfm | 2500 cfm |
Since approvement are made from time to time, the illustration and specifications are subject to change without notice.
