Cp 0032 Chicago Pneumatic Rock Drill
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description

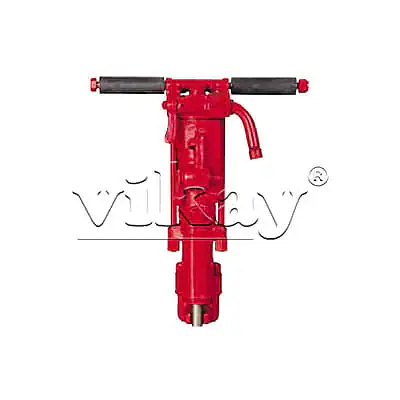

Cp 0032 Chicago Pneumatic Rock Drill
| Particulars |  | CP 0032 |
| Weight | kg | 25,5 |
| Length | mm | 575 |
| Air consumption | l/s | 48 |
| Blows per minute | bpm | 1980 |
| Piston diameter   | mm | 67 |
| Stroke length | mm | 51 |
| Rotation speed | rpm | 180 |
| Drill rate 2) | mm/min | 230 |
| Max drilling diameter | mm | 50 |
| Max drilling depth 3) | mm | 3000 |
| Air inlet | inch | 3/4" swivel |
| Muffler included | Â | Option |
| Vibration level 3 axes (ISO 28927-10) 1) | m/s2 | 21,9 |
| Sound power level guaranteed (2000/14/EC) 1) | dB(A) | 122 |
| Sound pressure level (ISO 11203) 1) | dB(A) | 111 |
| Chuck size | mm | Hex 22x108 |
| Part number | Â | T022117 |
| Stock Code No | Â | Z0011433 |
